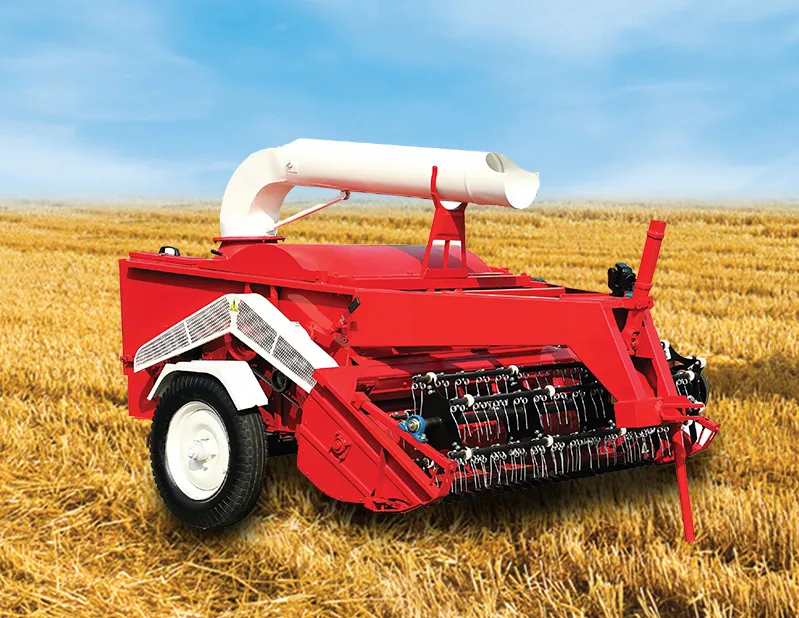

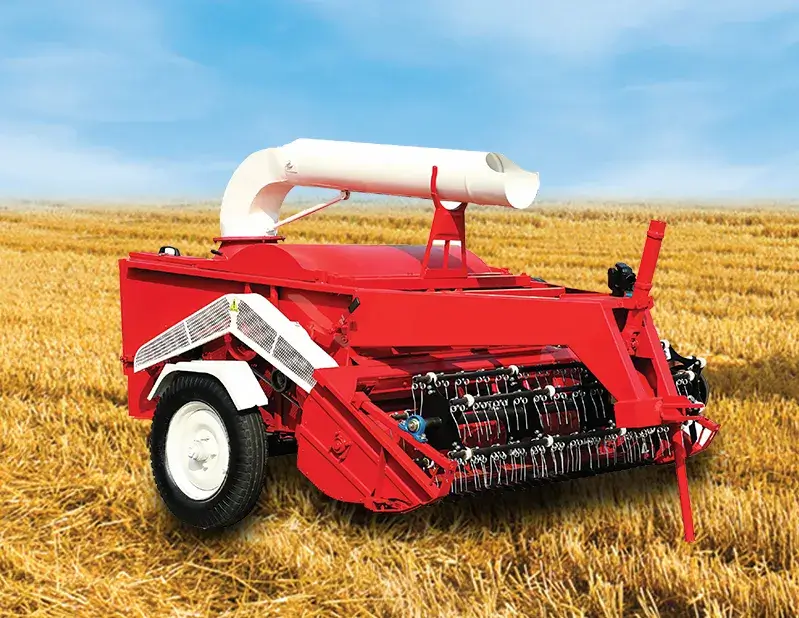

MAHINDRA STRAW REAPER
Dharti Mitra Straw Reaper by Mahindra delivers excellent and efficient performance in cutting and cleaning of straw. It is not only an excellent performer, but also is easy to operate and maintain.
Dharti Mitra Straw Reaper by Mahindra comes with features like Double Blower, Heavy Duty Gear, Twin Tampered Blades, Safety Guards & 1 Year Warranty.
SPECIFICATIONS
Know More About the Specification
MAHINDRA STRAW REAPER
| Machine | Size 57 inches(145 cm) | Size 61 inches(155 cm) |
|---|---|---|
| Chassis (mm) | 1574.8 | 1676.4 |
| Gear box | Heavy Duty | Heavy Duty |
| Basket | ||
| Length (mm] | 1435.1 | 1536 |
| Diameter (mm) | 850.9 | 901.7 |
| Blade [Number] | 37 | 39 |
| Threshing Drum | ||
| Length (mm] | 1422.4 | 1422.4 |
| Diameter (mm) | 781.05 | 781.05 |
| Blade [Number] | 288 | 320 |
| Blower | ||
| Type | Double blower | Double blower |
| Width (mm) | 260.35 | 260.35 |
| Diameter (mm) | 560 | 660 |
| Blower Fan Diameter (mm) | 509.6 | 609.6 |
| Guide Drum | ||
| Length (mm) | 1422.4 | 1524 |
| Diameter (mm) | 381 | 381 |
| Cutter Bar | ||
| Reel Length (mm) | 2057.4 | 2209 |
| Reel Diameter (mm) | 406.4 | 4064 |
| Blade (Number) | 28 | 30 |
| Fingers (Number) | 14 | 15 |
| Weght (kg) | 1800 | 1870 |
| Cutting Capacity (kg/h) | 2700 | 2900 |
